The business benefits of ground source heat pumps for rural landowners



Today’s word of the day: metathesiophobia, the ‘fear of change’. When it comes to business, change often means money, and that can often inhibit innovation and opportunities. But what if change made and saved your business money?

Ground Source Review: East Shaftoe Farm 3

The phase out of fossil fuel heating in buildings has been met with particular concern by those in the agricultural sector, however, this needn’t be as onerous as it may first seem.

Users of LPG and oil for farm houses, and those utilising biomass for high-energy use processes, will be familiar with the burgeoning political pressures on combustion-system emissions. The 25 year Environment Plan coupled with the Clean Air Strategy are paving the way for the issue of formal policy proposals to reduce carbon and pollution, which will have significant impact on agricultural uses of heating and cooling in both domestic and commercial applications.

And of course in addition to political pressures, the supply and cost of fossil fuels, and compliance requirements for biomass fuel sustainability, add to the case for alternative heating systems to be considered to future-proof agricultural businesses. For many, the case is strengthened even further by the wealth of diversification opportunities innovative heating systems can bring.

The solution is relatively simple, as well as financially rewarding, the biggest challenge they say is overcoming fear of change.



The business case for ground source

“As well as providing substantial energy and cost savings, the business case for ground source heat pumps is very compelling. Ground source heat pumps are eligible for the highest heating tariff available through the Non Domestic Renewable Heat Incentive (RHI) scheme, amply repaying capital costs, without the hassle users of biomass and the RHI will be familiar with such as fuel records and fuel sustainability criteria”, says Paul Dennison, Technical Sales Manager at Kensa Heat Pumps.

“Ground source is particularly suited to agricultural businesses with readily available land or water sources for ground arrays. And as slinkies and boreholes are installed below the ground, the land can still be used for crops or grazing. Plus, ground source heat pump systems can also be easily integrated with existing renewable technologies such as hydro, Solar PV and wind turbines, this allows business owners to direct any surplus heat into new business opportunities.”

As a non-combustion heat source, ground source heat pumps produce no point of use emissions – no NOx, no SOx, no particulates, and no CO2, lessening the onus of offsetting carbon through planting. Producing three times as much energy as it consumes, if coupled with on-site electrical generation, ground source heat pumps offer a wholly self-sufficient heating and cooling solution whilst enabling diversification opportunities.



Fuel for change

Multiple barn conversions

Switched on farmers are changing from traditional fossil fuel and biomass systems to ground source heat pumps to not only fuel their heating and cooling requirements but also to enable diversification. Increasingly common diversification schemes feature the conversion of buildings to holiday accommodation featuring individual ground source heat pumps inside each dwelling connected to ‘Shared Ground Loop Arrays’; a form of communal heating, which uniquely receive 20-years of Non Domestic RHI payments for the deemed heat consumption based on the property’s Energy Performance Certificate as opposed to metered consumption, removing a further familiar headache familiar with biomass RHI claims, says Kensa.

“Coupled with easier planning with Class Q, it is great timing for landowners that in May Government introduced deemed RHI payments for Shared Ground Loop Arrays, making ground source heat pumps connected to shared ground arrays an easy, financially rewarding, low carbon and low hassle choice for heating rural off-gas clusters of properties.”

“Of course Shared Ground Loop Arrays are not exclusive to barn conversions for holiday lets – any farm featuring clusters of more than one building can use this system”, advises Paul.

A further advantage to Shared Ground Loop Arrays is the absence of heat losses through pipework, a common factor to stall RHI payments for biomass applications. Unlike plant room based systems feeding heat to separate dwellings via pipework, with Shared Ground Loop Arrays each individual ground source heat pump in each property upgrades the low temperature ‘heat’ energy fed to it by the ground for its own use, mitigating any heat losses to each dwelling.

More abstract diversification opportunities are also being explored by some of the more entrepreneurial, as Paul explains:

“With the need for many landowners to find ways to replace the shortfall from CAP payments we are seeing more and more diversification enquiries for ground source, some of which have even surprised us with their innovative application suggestions! From using ground source heat pumps powered by on-site electrical generation to dry by-products for selling, such as manure for fertilizer, or rock salt for crisps, to maintaining constant warm temperatures for the ambient conditions required for hydroponics – we have even been approached to heat a cannabis and hemp facility for the legal production of CBD oil!”



Back to basics

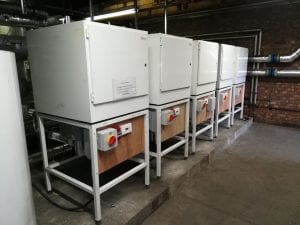

Cascaded commercial plant room heat pumps Stakeford 4

For many the first tentative steps into ground source heat pumps are when they are used to replace aging fossil fuel systems used in high energy consumption applications. It is in such cases that Kensa has helped numerous farmers to make the simple switch from cascaded boilers to cascaded modular ground source heat pumps. And of course, as with many uses of ground source heat pumps, there are more benefits than first meet the eye, rather than just a like-for-like heating system for heating system.

Also eligible for the Non Domestic Renewable Heat Incentive, cascaded ground source heat pump systems attract a guaranteed income for 20 years whilst providing high efficiencies and low running costs by adjusting between minimum and maximum heat demand as needed, only ever producing the required amount of heat and hot water needed.

“Any high heat load can be matched with a cascaded system, as the central ground array is sized to deal with the peak heat demand, assuming the building can be heated up to a 50°C flow”, says Paul.

Cascaded systems also satisfy both space heating and domestic hot water demands at the same time. These types of systems feature multiple ground source heat pumps with one or more dedicated to the production of domestic hot water only, and the remaining units dedicated to the space heating load.

Having more than one heat pump also offers a degree of redundancy; in the unlikely event that one breaks down, the remainder of the system will continue to operate, avoiding any downtime for repairs, and mitigating any operational losses – saving the bottom line.



More information

More information on cascaded ground source heat pump systems, along with Shared Ground Arrays, including example project costs and different ground array configurations, can be found at www.kensaheatpumps.com/solution-centre/.

Have further queries? Paul Dennison of Kensa Heat Pumps would be happy to discuss any projects or opportunities in confidence and without obligation.

Paul Dennison, Technical Sales Manager, Kensa Heat Pumps – 0845 680 4328 – [email protected]
